Lathe - cycle-controlled

Machinelist: Lathe - cycle-controlled

Lathe - cycle-controlled

JS-Werkzeugmaschinen GmbH
Weserstrasse 228
32545 Bad Oeynhausen
Deutschland

+49 (0) 163 - 6037450
info@js-wzm.de
www.js-wzm.de

#2062-PRO11N · Lathe - cycle-controlled

HANKOOK - Protec 11N - - 2023 - Fanuc 0i-TB/F

Technical details

turning diameter 1.100 mm︱turning length bis 8.000 mm︱control Fanuc 0i-TB/F ︱swing dia. over bed 1.100 mm︱swing diameter over cross slide guide 740 mm︱max. turning diameter 1.100 mm︱centre distance 2000 - 8000 mm︱load capacity between centers 8.000 kg︱Spindle: ︱spindle bore Ø 330 mm︱spindle nose A2-20 ︱turning speed range - spindle 2 ~ 500 min/-1︱gear steps Auto 2 -step︱spindle center taper MT #6 .︱Carriage: ︱type of tool post Manual H-4 ︱Shank diameter 32 x 32 mm︱travel -x axis 620 mm︱travel -z axis - 8000 mm︱rapid traverse X-axis 4 m/min︱

Heavy Duty CNC Turning Lathe HANKOOK PROTEC 11N x 2.000 - 8.000 high-performance CNC lathe Features Suitable for large diameter workpiece ( Ø1100mm) Up to 8,000mm (315 ) shaft turning length Large 8 tons (17,600lbs) load capacity between centers Automatic shifting 4 or 2 speed geared head stock Big bore spindle Ø330 Extra wide one-piece cast iron bed Induction-hardened and precision-ground guide ways High precision ball screws and servo motors for both axes Square tool post featuring Curvic coupling Powerful 37kW(50HP) spindle motor Built-in live tailstock spindle ( Ø200mm quill dia.) Rapid feed device for tailstock body Guidance hand-wheel (simultaneous 2 axes control) X/Z axes electronic hand-wheels (MPG) Full automatic lubrication to all critical areas

turning diameter 1.100 mm

turning length bis 8.000 mm

control Fanuc 0i-TB/F

swing dia. over bed 1.100 mm

swing diameter over cross slide . 740 mm

max. turning diameter 1.100 mm

centre distance 2000 - 8000 mm

load capacity between centers 8.000 kg

spindle bore Ø 330 mm

spindle nose A2-20

turning speed range - spindle 2 ~ 500 min/-1

gear steps Auto 2 -step

spindle center taper MT #6 .

type of tool post Manual H-4

Shank diameter 32 x 32 mm

travel -x axis 620 mm

travel -z axis - 8000 mm

rapid traverse X-axis 4 m/min

Description :

Heavy Duty CNC Turning Lathe

HANKOOK PROTEC 11N x 2.000 - 8.000 high-performance CNC lathe

Features
Suitable for large diameter workpiece ( Ø1100mm)
Up to 8,000mm (315 ) shaft turning length
Large 8 tons (17,600lbs) load capacity between centers
Automatic shifting 4 or 2 speed geared head stock
Big bore spindle Ø330
Extra wide one-piece cast iron bed
Induction-hardened and precision-ground guide ways
High precision ball screws and servo motors for both axes
Square tool post featuring Curvic coupling
Powerful 37kW(50HP) spindle motor
Built-in live tailstock spindle ( Ø200mm quill dia.)
Rapid feed device for tailstock body
Guidance hand-wheel (simultaneous 2 axes control)
X/Z axes electronic hand-wheels (MPG)
Full automatic lubrication to all critical areas

Datasheet

used Lathes Lathe - cycle-controlled TRENS SE 320 numeric

Kemmerich Werkzeugmaschinen
Im Rottfeld 1a
40789 Monheim am Rhein
Deutschland

+49 2173 207474
+49 2173 207473
info@kemmerich.biz
www.kemmerich.biz

#1020-19783 · Lathe - cycle-controlled

TRENS - SE 320 numeric - - 2015 - Fanuc 0i TF

Technical details

turning diameter 320 mm︱turning length 750 mm︱control Fanuc 0i TF ︱turning diameter over slide 170 mm︱engine output 7/10 kW︱spindle bore 42 mm︱speeds 0 - 3500 U/min︱workpiece weight max. - kg︱tailstock quill taper MT 4 ︱diameter of quill 60 mm︱quill stroke 120 mm︱total power requirement 14 kVA︱weight of the machine ca. 1,6 t︱dimensions of the machine ca. 2,4 x 1,5 x 1,8 m︱

Cycle lathe with: - CNC control fanuc 0i TF - 8 MultiSwiss B tool holders - 3 jaws chuck dia 160mm - 4 jaws chuck dia 200mm - tailstock

turning diameter 320 mm

turning length 750 mm

control Fanuc 0i TF

turning diameter over slide 170 mm

engine output 7/10 kW

spindle bore 42 mm

speeds 0 - 3500 U/min

workpiece weight max. - kg

tailstock quill taper MT 4

diameter of quill 60 mm

quill stroke 120 mm

total power requirement 14 kVA

weight of the machine ca. 1,6 t

dimensions of the machine ca. 2,4 x 1,5 x 1,8 m

Description :

Cycle lathe with:
- CNC control fanuc 0i TF
- 8 MultiSwiss B tool holders
- 3 jaws chuck dia 160mm
- 4 jaws chuck dia 200mm
- tailstock

Datasheet

used Lathes Lathe - cycle-controlled UNITECH UT 560

WeMa Antonius Pigge GmbH
Barnstorfer Str. 3
49424 Goldenstedt
Deutschland

+49 (0)444496700
+49 (0)4444967010
info@wema-pigge.de
www.wema-pigge.de

#2031-3666 · Lathe - cycle-controlled

UNITECH - UT 560 - - 2014 - Siemens Sinumerik 828 D

Technical details

greates pass round over bed 560 mm︱turning length 1500 mm︱control Siemens Sinumerik 828 D ︱swing diameter over slide rest 390 mm︱spindle speed: 2400 Upm︱bed width 345 mm︱spindle bore 80 mm︱diameter of quill 75 mm︱quill stroke 200 mm︱tailstock quill taper MT 5 ︱3-jaw chuck Schunk Rota S 315 ︱3-jaw-chuck diameter 315 mm︱main drive 14 kW︱weight of the machine ca. 2900 kg︱dimensions of the machine ca. m︱

removeable bed bridge user interface control: Shopturn hydraulical tailstock quill adjustment key bar chuck Schunk Rota S+ 2.0 315-92 quick change tool holder Choromant Capto

greates pass round over bed 560 mm

turning length 1500 mm

control Siemens Sinumerik 828 D

swing diameter over slide rest 390 mm

spindle speed: 2400 Upm

bed width 345 mm

spindle bore 80 mm

diameter of quill 75 mm

quill stroke 200 mm

tailstock quill taper MT 5

3-jaw chuck Schunk Rota S 315

3-jaw-chuck diameter 315 mm

main drive 14 kW

weight of the machine ca. 2900 kg

Description :

removeable bed bridge

user interface control: Shopturn

hydraulical tailstock quill adjustment

key bar chuck Schunk Rota S+ 2.0 315-92

quick change tool holder Choromant Capto

Datasheet

used Lathes Lathe - cycle-controlled CAZENEUVE OPTIMAX 360

Marcels Maschinen AG
Anthoptstrasse 11
8222 Beringen (Schaffhausen)
Schweiz

(0041) 44 872 3400
(0041) 44 872 3403
info@marcels-maschinen.ch
http://www.marcels-maschinen.ch

#1065-4829 · Lathe - cycle-controlled

CAZENEUVE - OPTIMAX 360 - - 2013 - SIEMENS

Technical details

turning diameter 380 mm︱turning length 700 mm︱control SIEMENS ︱spindle turning speed - stepless 2500 U/min︱tailstock quill taper MT 4 ︱weight 1.5 t︱dimensions of the machine ca. 2000x1400x1820 mmxmmxmm︱

turning diameter 380 mm

turning length 700 mm

control SIEMENS

spindle turning speed - stepless 2500 U/min

tailstock quill taper MT 4

weight 1.5 t

dimensions of the machine ca. 2000x1400x1820 mmxmmxmm

Datasheet

used Lathes Lathe - cycle-controlled SAEILO Contur T-52

Gustav Schönberger GmbH
Hünderstr. 14
74080 Heilbronn
Deutschland

(0049)7131 46060
(0049)7131 460620
schoenberger@gsh-maschinen.de
www.gsh-maschinen.de

#1036-032953 · Lathe - cycle-controlled

SAEILO - Contur T-52 - - 2011 - Heidenhain 4290

Technical details

turning diameter 520 mm︱turning length 1450 mm︱control Heidenhain 4290 ︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

Heidenhain CNC Pilot 4290 control 3-jaw chuck 8-fold tool revolver (VDI30) driven tools tail stock coolant device Technische Daten / technical details: Spitzenweite / center to center 1500 mm Drehdurchmesser über Bett / turning diameter over bed 520 mm Drehdurchmesser über Schlitten / turning diameter over sledge 290 mm Verfahrweg X / travel X 270 mm Verfahrweg Z / travel Z 1450 mm Spindelbohrung / spindle hole 77 mm Drehzahlbereich / spindle speed 7-2600 UpM /rpm Eilgang / rapid feed 3/5 m/min Antriebsleistung Spindel 40%ED / drive capacity spindle 40%ED 15 kW Gewicht der Maschine ca. / weight ca. 3000 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

turning diameter 520 mm

turning length 1450 mm

control Heidenhain 4290

Description :

Heidenhain CNC Pilot 4290 control
3-jaw chuck
8-fold tool revolver (VDI30)
driven tools
tail stock
coolant device

Technische Daten / technical details:
Spitzenweite / center to center 1500 mm
Drehdurchmesser über Bett / turning diameter over bed 520 mm
Drehdurchmesser über Schlitten / turning diameter over sledge 290 mm
Verfahrweg X / travel X 270 mm
Verfahrweg Z / travel Z 1450 mm
Spindelbohrung / spindle hole 77 mm
Drehzahlbereich / spindle speed 7-2600 UpM /rpm
Eilgang / rapid feed 3/5 m/min
Antriebsleistung Spindel 40%ED / drive capacity spindle 40%ED 15 kW
Gewicht der Maschine ca. / weight ca. 3000 kg
Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -
Technical data, accessories and description of the machine are not binding.

Datasheet

used Lathes Lathe - cycle-controlled CHALLENGER MICROTURN BNC 2280x2000

Karl Günter Wirths GmbH
Scharpenberger Strasse 96-98
58256 Ennepetal
Deutschland

02333-79050
02333-790555
sales@wirths.net
www.wirths.net

#1041-203441 · Lathe - cycle-controlled

CHALLENGER MICROTURN - BNC 2280x2000 - - 2010 - Fagor 8055 iT

Technical details

turning diameter 0550 mm︱turning length 2000 mm︱control Fagor 8055 iT ︱turning dia. over face-slide 310 mm︱turret head 8 Pos. ︱throat 790 x 283 mm︱bed width 405 mm︱max. workpiece weight between centers 2000 kg︱spindle turning speed range 80- 3500 U/min︱spindle bore 82 mm︱cross movement 300 mm︱longitudinal travel 2150 mm︱rapid traverse X-axis 15 m/min︱rapid traverse Z-axis 15 m/min︱total power requirement 15/22 kW︱weight of the machine ca. 5 t︱dimensions of the machine ca. 4 x 2,4 x 2,4 m︱

Accessories: 3 jaw chuck hand operated, 8 position turret VDI 40, steady rest and tailstock. Control: Fagor 8055 iT.

turning diameter 0550 mm

turning length 2000 mm

control Fagor 8055 iT

turning dia. over face-slide 310 mm

turret head 8 Pos.

throat 790 x 283 mm

bed width 405 mm

max. workpiece weight between ce. 2000 kg

spindle turning speed range 80- 3500 U/min

spindle bore 82 mm

cross movement 300 mm

longitudinal travel 2150 mm

rapid traverse X-axis 15 m/min

rapid traverse Z-axis 15 m/min

total power requirement 15/22 kW

weight of the machine ca. 5 t

dimensions of the machine ca. 4 x 2,4 x 2,4 m

Description :

Accessories: 3 jaw chuck hand operated, 8 position turret VDI 40, steady rest
and tailstock. Control: Fagor 8055 iT.

Datasheet

used Lathes Lathe - cycle-controlled WAGNER WDE 500

Kirchgeorg Werkzeugmaschinen
Frankfurter Straße 141
63303 Dreieich-Sprendlingen
Deutschland

0049-(0)-6103-9909-0
0049-(0)-6103-9909-50
info@kirchgeorg.de
www.kirchgeorg.de

#1072-20401 · Lathe - cycle-controlled

WAGNER - WDE 500 - - 2010 - Sinumerik

Technical details

centre height 250 mm︱centre distance 1500 mm︱turning diameter over bed 500 mm︱turning diameter over slide 280 mm︱turning length 1500 mm︱spindle taper D8 ︱control Sinumerik ︱bed width 390 mm︱spindle bore 82 mm︱turning speed range 45-2000 U/min︱rapid travel - longitudinal/face 8/4 m/min︱3-jaw-chuck diameter 250 mm︱quick change toolholder System Multifix ︱drive capacity - spindle motor 6,5 kW︱taper in tailstock-quill MK 5 ︱dia. of quill 75 mm︱quill stroke 150 mm︱coolant 3,0 ︱voltage 400 V︱total power requirement 24 kVA︱

- Serial-No. G01262 - Control: Sinumerik 802 C

centre height 250 mm

centre distance 1500 mm

turning diameter over bed 500 mm

turning diameter over slide 280 mm

turning length 1500 mm

spindle taper D8

control Sinumerik

bed width 390 mm

spindle bore 82 mm

turning speed range 45-2000 U/min

rapid travel - longitudinal/face 8/4 m/min

3-jaw-chuck diameter 250 mm

quick change toolholder System Multifix

drive capacity - spindle motor 6,5 kW

taper in tailstock-quill MK 5

dia. of quill 75 mm

quill stroke 150 mm

coolant 3,0

voltage 400 V

total power requirement 24 kVA

Description :

- Serial-No. G01262
- Control: Sinumerik 802 C

Datasheet

used Lathes Lathe - cycle-controlled HARRISON ALPHA 2800XS

STEINHAND GmbH
Am Stahlwerk 15
45527 Hattingen
Deutschland

+49 (0) 2324 / 977 26 - 01
+49 (0) 2324 / 977 26 - 99
info@steinhand.de
www.steinhand.de

#2026-1528 · Lathe - cycle-controlled

HARRISON - ALPHA 2800XS - - 2010 - FANUC 21i-TB

Technical details

turning length 1.200 mm︱Height of centres 400 mm︱swing over bed 800 mm︱diameter over cross-slide max. 510 mm︱control FANUC 21i-TB ︱spindle bore 250 mm︱

Lathe - cycle-controlled | HARRISON - ALPHA 2800XS The machine is in a well-maintained condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: a 2800XS | ALPHA2800XS | ALPHA-2800XS | ALPHA 2800 | ALPHA2800 | ALPHA- 2800

turning length 1.200 mm

Height of centres 400 mm

swing over bed 800 mm

diameter over cross-slide max. 510 mm

control FANUC 21i-TB

spindle bore 250 mm

Description :

Lathe - cycle-controlled | HARRISON - ALPHA 2800XS

The machine is in a well-maintained condition.

Please refer to further technical details in the attachement of the offer.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
#Tags: a 2800XS | ALPHA2800XS | ALPHA-2800XS | ALPHA 2800 | ALPHA2800 | ALPHA-
2800

Datasheet

used Lathes Lathe - cycle-controlled SEIGER SLZ 1200 x 6000

EMUK GmbH Werkzeugmaschinen
Siemensstrasse 24 a
76316 Malsch
Deutschland

+49 (0) 7246 1392
+49 (0) 7246 1394
info@emuk.de
www.emuk.de

#1058-23228 · Lathe - cycle-controlled

SEIGER - SLZ 1200 x 6000 - - 2009 - Heidenhain

Technical details

turning diameter 1250 mm︱turning length 6000 mm︱control Heidenhain ︱spindle bore 130 mm︱0 5-710 U/min︱transmission ratio 2 ︱workpiece weight 7000 kg︱total power requirement 37/52 kW︱weight of the machine ca. 16 t︱dimensions of the machine ca. 12x4x2 m︱

turning diameter 1250 mm

turning length 6000 mm

control Heidenhain

spindle bore 130 mm

0 5-710 U/min

transmission ratio 2

workpiece weight 7000 kg

total power requirement 37/52 kW

weight of the machine ca. 16 t

dimensions of the machine ca. 12x4x2 m

Datasheet

Karl Günter Wirths GmbH
Scharpenberger Strasse 96-98
58256 Ennepetal
Deutschland

02333-79050
02333-790555
sales@wirths.net
www.wirths.net

#1041-203436 · Lathe - cycle-controlled

WAGNER - WDE 500 - - 2007 - 802 C

Technical details

turning diameter 0500 mm︱turning length 1500 mm︱control 802 C ︱turning dia. over face-slide 280 mm︱spindle bore 82 mm︱spindle turning speed range 20- 3000 U/min︱feeds - longitudinal 0- 5000 mm/min︱feeds - cross 0- 5000 min︱rapid traverse longitudinal 5 m/min︱rapid traverse cross 5 m/min︱main drive 7,5 kW︱travel -z axis 1435 mm︱travel -x axis 295 mm︱quill stroke 150 mm︱bed width 350 mm︱weight of the machine ca. 3 t︱dimensions of the machine ca. 3,23 x 1,47 x 1,73 m︱

Cycle control Siemens 802 C

turning diameter 0500 mm

turning length 1500 mm

control 802 C

turning dia. over face-slide 280 mm

spindle bore 82 mm

spindle turning speed range 20- 3000 U/min

feeds - longitudinal 0- 5000 mm/min

feeds - cross 0- 5000 min

rapid traverse longitudinal 5 m/min

rapid traverse cross 5 m/min

main drive 7,5 kW

travel -z axis 1435 mm

travel -x axis 295 mm

quill stroke 150 mm

bed width 350 mm

weight of the machine ca. 3 t

dimensions of the machine ca. 3,23 x 1,47 x 1,73 m

Description :

Cycle control Siemens 802 C

Datasheet

used Lathes Lathe - cycle-controlled VDF BOEHRINGER DUS 630 TI

FIMOTEC
20 RUE AMPERE
67500 HAGUENAU
Frankreich

+33 (0)388720247
+33 (0)388936066
FIMOTEC@WANADOO.FR
WWW.FIMOTEC.FR

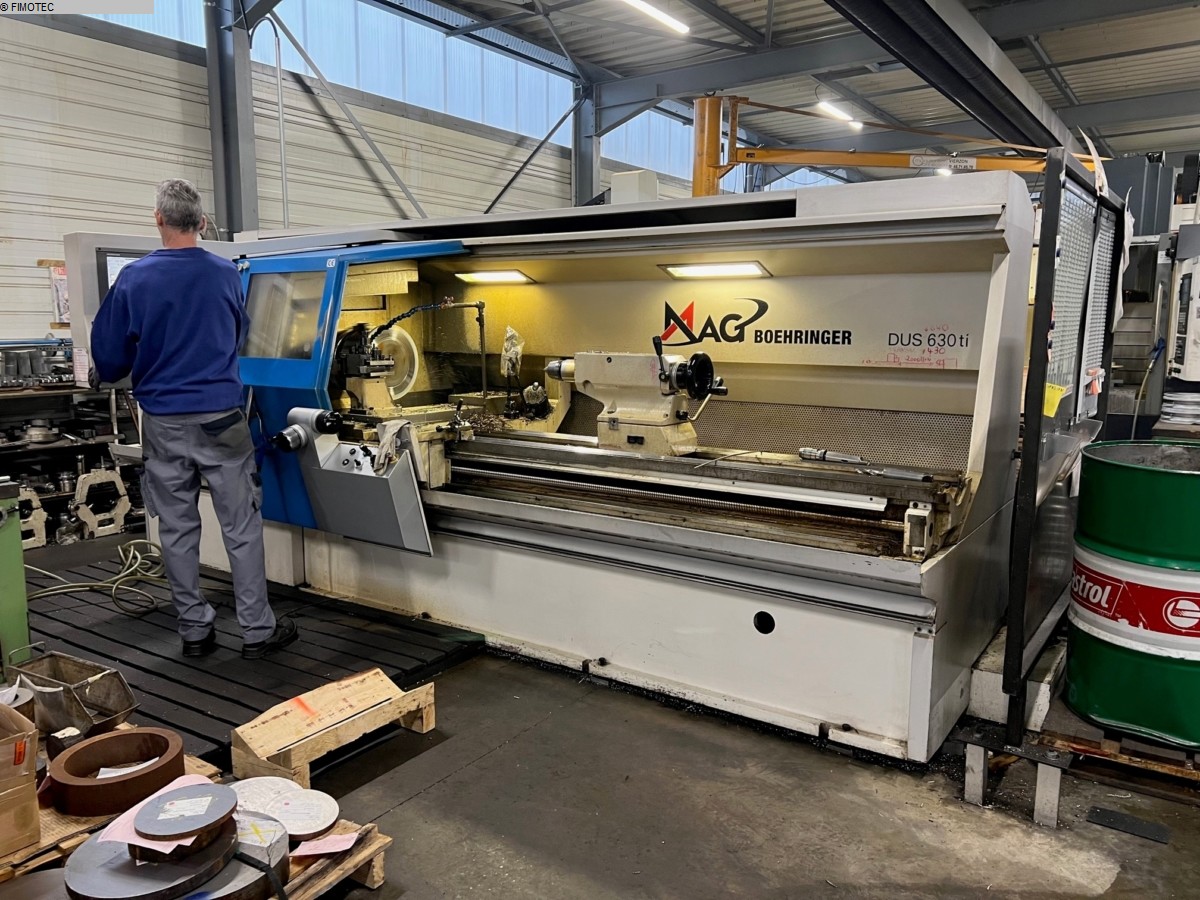

#1105-03777 · Lathe - cycle-controlled

VDF BOEHRINGER - DUS 630 TI - - 2007 - HEINDENHAIN MANUEL PLUS 411

Technical details

swing diameter max. 640 mm︱turning length max. 3.000 mm︱control HEINDENHAIN MANUEL PLUS 411︱swing diameter over face slide 435 mm︱radial face slide travel 345 mm︱centre height 280 mm︱bed width 360 mm︱Main spindle: ︱turning speed range - main spindle 3 - 2.500 min/-1︱power capacity - main spindel 19 / 15 kW︱max. Torque 2500 Nm︱transmission ratio 2 ︱spindle nose DIN 55027 / 8 ︱spindle bearing diameter 100 mm︱max. bar capacity 95 mm︱usable bar diameter 80 mm︱chucking diameter 415 mm︱turret: ︱number of toolpositions PARRAT 4 FACH pos.4︱tool taper DIN 69880 / 32 X 25 ︱

Lathe - cycle controled VDF BOEHRINGER - DUS 630 TI X 3000 YEAR 2007 CNC HEIDENHAIN MANUEL PLUS 411

swing diameter max. 640 mm

turning length max. 3.000 mm

control HEINDENHAIN MANUEL PLUS 411

swing diameter over face slide 435 mm

radial face slide travel 345 mm

centre height 280 mm

bed width 360 mm

turning speed range - main spind. 3 - 2.500 min/-1

power capacity - main spindel 19 / 15 kW

max. Torque 2500 Nm

transmission ratio 2

spindle nose DIN 55027 / 8

spindle bearing diameter 100 mm

max. bar capacity 95 mm

usable bar diameter 80 mm

chucking diameter 415 mm

number of toolpositions PARRAT 4 FACH pos.4

tool taper DIN 69880 / 32 X 25

Description :

Lathe - cycle controled
VDF BOEHRINGER - DUS 630 TI X 3000 YEAR 2007
CNC HEIDENHAIN MANUEL PLUS 411

Datasheet

used Lathes Lathe - cycle-controlled SOMAB OPTIMAB 450

FIMOTEC
20 RUE AMPERE
67500 HAGUENAU
Frankreich

+33 (0)388720247
+33 (0)388936066
FIMOTEC@WANADOO.FR
WWW.FIMOTEC.FR

#1105-03940 · Lathe - cycle-controlled

SOMAB - OPTIMAB 450 - - 2005 - SOMAB PL + S NUM 1060

Technical details

turning diameter 400 mm︱turning length 1100 mm︱control SOMAB PL + S NUM 1060︱turning dia. over face-slide 350 mm︱turning diameter over cross slideways 320 mm︱main drive motor 12 kW︱spindle turning speed range 4500 U/min︱spindle passage 73 mm︱chucking diameter 250 mm︱taper in tailstock MT 4 ︱total power requirement 23 kW︱weight of the machine ca. 5 t︱

Machine in inclined bed execution with NUM-SOMAB PL+S3 cycle control with 12 POSTES TURRET

turning diameter 400 mm

turning length 1100 mm

control SOMAB PL + S NUM 1060

turning dia. over face-slide 350 mm

turning diameter over cross slid. 320 mm

main drive motor 12 kW

spindle turning speed range 4500 U/min

spindle passage 73 mm

chucking diameter 250 mm

taper in tailstock MT 4

total power requirement 23 kW

weight of the machine ca. 5 t

Description :

Machine in inclined bed execution
with NUM-SOMAB PL+S3 cycle control
with 12 POSTES TURRET

Datasheet

used Lathes Lathe - cycle-controlled FORMAT UD260 CH

WST Stein Werkzeugmaschinen GmbH
Hans-Wilhelmi Str.5
66386 St.Ingbert/Rohrbach
Deutschland

+49 (0) 6894 - 59 01 81
+49 (0) 6894 - 59 01 82
office@wst-stein.com
www.wst-stein.com

#1042-2732 · Lathe - cycle-controlled

FORMAT - UD260 CH - - 2005 - Fagor

Technical details

turning diameter 520 mm︱turning length 1500 mm︱total power requirement 13 kW︱turning diameter over bed slide 320 mm︱weight of the machine ca. 4 t︱dimensions of the machine ca. m︱control Facor ︱closed steadies: number ︱tool-holder 4 Fach Parat fach︱faceplate with 4 jaws 400 mm︱3 jaw chuck 300 mm︱

turning diameter 520 mm

turning length 1500 mm

total power requirement 13 kW

turning diameter over bed slide 320 mm

weight of the machine ca. 4 t

control Facor

tool-holder 4 Fach Parat fach

faceplate with 4 jaws 400 mm

3 jaw chuck 300 mm

Datasheet

used Lathes Lathe - cycle-controlled KERN CD 400 M

Marcels Maschinen AG
Anthoptstrasse 11
8222 Beringen (Schaffhausen)
Schweiz

(0041) 44 872 3400
(0041) 44 872 3403
info@marcels-maschinen.ch
http://www.marcels-maschinen.ch

#1065-4844 · Lathe - cycle-controlled

KERN - CD 400 M - - 2004 -

Technical details

Control: Manufacture Fanuc ︱type Quick Turn mm︱turning dia. over bed 400 mm︱centre height 200 mm︱centre distance 1000 mm︱turning dia. over face-slide 230 mm︱turning dia. in gap 460 mm︱spindle bore 60 mm︱spindle taper: DIN 55027 / Gr.6 ︱spindle turning speed - stepless 1-3000 U/min︱tailstock quill taper MT 4 ︱diameter of quill 60 mm︱quill stroke 120 mm︱total power requirement 11 kW︱weight of the machine ca. 1.6 t︱dimensions of the machine ca. 275 x 140 x 155 cm x cm x cm︱Quick-change toolholder Multifix B ︱Number of toolholders 6 ︱3-jaw chuck: diameter 200 mm︱Collet chuck F48 ︱

Control: Manufacture Fanuc

type Quick Turn mm

turning dia. over bed 400 mm

centre height 200 mm

centre distance 1000 mm

turning dia. over face-slide 230 mm

turning dia. in gap 460 mm

spindle bore 60 mm

spindle taper: DIN 55027 / Gr.6

spindle turning speed - stepless 1-3000 U/min

tailstock quill taper MT 4

diameter of quill 60 mm

quill stroke 120 mm

total power requirement 11 kW

weight of the machine ca. 1.6 t

dimensions of the machine ca. 275 x 140 x 155 cm x cm x cm

Quick-change toolholder Multifix B

Number of toolholders 6

3-jaw chuck: diameter 200 mm

Collet chuck F48

Datasheet

used Lathes Lathe - cycle-controlled POREBA TBA 63 x 2000

Kemmerich Werkzeugmaschinen
Im Rottfeld 1a
40789 Monheim am Rhein
Deutschland

+49 2173 207474
+49 2173 207473
info@kemmerich.biz
www.kemmerich.biz

#1020-17734 · Lathe - cycle-controlled

POREBA - TBA 63 x 2000 - - 2004 - Fanuc PowerMate

Technical details

turning diameter 630 mm︱turning length 2000 mm︱control Fanuc PowerMate ︱turning diameter over slide 370 mm︱current capacity 30 kVA︱weight of the machine ca. 5,5 t︱dimensions of the machine ca. 4,0 x 2,0 x 1,9 m︱

Cycle Controlled Lathe with: CNC control Fanuc PowerMate/QuickTurn - 1 Steady 370mm - 1 steady 160mm - 1 Röhm chuck 400mm - Chip Tray with Coolant Pump - Tool Holder, Accessories

turning diameter 630 mm

turning length 2000 mm

control Fanuc PowerMate

turning diameter over slide 370 mm

current capacity 30 kVA

weight of the machine ca. 5,5 t

dimensions of the machine ca. 4,0 x 2,0 x 1,9 m

Description :

Cycle Controlled Lathe with:
CNC control Fanuc PowerMate/QuickTurn
- 1 Steady 370mm
- 1 steady 160mm
- 1 Röhm chuck 400mm
- Chip Tray with Coolant Pump
- Tool Holder, Accessories

Datasheet

used Lathes Lathe - cycle-controlled WEILER E110

Gustav Schönberger GmbH
Hünderstr. 14
74080 Heilbronn
Deutschland

(0049)7131 46060
(0049)7131 460620
schoenberger@gsh-maschinen.de
www.gsh-maschinen.de

#1036-032976 · Lathe - cycle-controlled

WEILER - E110 - - 2004 - Weiler D2

Technical details

centre distance 4500 mm︱swing diameter max. over bed cover 1100 mm︱swing diameter over face slide 730 mm︱control Weiler D2 ︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱turning diameter mm︱turning length mm︱

Weiler D2 control 3-jaw chuck Röhm diameter 630mm Parat tool holder device Boring trestle steady rest 100-300mm steady rest 300-600mm tail stock chip conveyor coolant device Technische Daten / technical details: Spitzenweite / center to center 4500 mm Umlauf-Ø über Bett / turning Ø over bed 1100 mm Umlauf-Ø über Schlitten / turning Ø over sledge 730 mm Drehzahlbereich (2-stufig) / spindle speed (2-steps) 1-1120 UpM /rpm Spindelbohrung / spindle hole 128 mm Eilgang Z /X / rapid feed Z /X 7/3,5 m/min. Reitstockaufnahme / tail stock taper MK6 Antriebsleistung Spindel / drive capacity spindle 45/37 kW Gewicht der Maschine ca. / weight ca. 11500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

centre distance 4500 mm

swing diameter max. over bed cov. 1100 mm

swing diameter over face slide 730 mm

control Weiler D2

Description :

Weiler D2 control
3-jaw chuck Röhm diameter 630mm
Parat tool holder device
Boring trestle
steady rest 100-300mm
steady rest 300-600mm
tail stock
chip conveyor
coolant device

Technische Daten / technical details:
Spitzenweite / center to center 4500 mm
Umlauf-Ø über Bett / turning Ø over bed 1100 mm
Umlauf-Ø über Schlitten / turning Ø over sledge 730 mm
Drehzahlbereich (2-stufig) / spindle speed (2-steps) 1-1120 UpM /rpm
Spindelbohrung / spindle hole 128 mm
Eilgang Z /X / rapid feed Z /X 7/3,5 m/min.
Reitstockaufnahme / tail stock taper MK6
Antriebsleistung Spindel / drive capacity spindle 45/37 kW
Gewicht der Maschine ca. / weight ca. 11500 kg
Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -
Technical data, accessories and description of the machine are not binding.

Datasheet

used Lathes Lathe - cycle-controlled GILDEMEISTER NEF 320 K

Markus Hirsch GmbH
Hüttenstrasse 1
46284 Dorsten
Deutschland

+49 2362 95035 12
+49 2362 95035 10
liersch@hirsch-maschinen.de
www.hirsch-maschinen.de

#1077-02894 · Lathe - cycle-controlled

GILDEMEISTER - NEF 320 K - - 2003 - Siemens

Technical details

turning diameter 320 mm︱turning length 750 mm︱control Siemens ︱type 810DL CCUO︱turning diameter over slide rest 150 mm︱cross movement 185 mm︱spindle passage 52 mm︱turning speeds 14-3550 U/min︱transmission ratio 2 ︱quill stroke 120 mm︱rapid traverse 6 m/min︱main drive motor 7 kW︱3-jaw-chuck diameter 200 mm︱total power requirement 10 kW︱weight of the machine ca. 2 t︱dimensions of the machine ca. 2,6x1,44x1,44 m︱

8950 turning hours

turning diameter 320 mm

turning length 750 mm

control Siemens

type 810DL CCUO

turning diameter over slide rest 150 mm

cross movement 185 mm

spindle passage 52 mm

turning speeds 14-3550 U/min

transmission ratio 2

quill stroke 120 mm

rapid traverse 6 m/min

main drive motor 7 kW

3-jaw-chuck diameter 200 mm

total power requirement 10 kW

weight of the machine ca. 2 t

dimensions of the machine ca. 2,6x1,44x1,44 m

Description :

8950 turning hours

Datasheet

used Lathes Lathe - cycle-controlled MONFORTS KNC 6 x 3000

Klaus Rosenboom GmbH
Oppenheimer Str. 19
28307 Bremen

+49 (0) 4 21 / 33 30 10
+49 (0) 4 21 / 48 70 45
info@rosenboom-wzm.de
www.rosenboom-wzm.de

#1021-51210 · Lathe - cycle-controlled

MONFORTS - KNC 6 x 3000 - - 2003 - Monforts EuroTurn

Technical details

turning diameter 290 mm︱turning length 3000 mm︱swing dia. 650 mm︱swing diameter over face slide 350 mm︱spindle bore diameter 71 mm︱number of controlled axis 2 ︱control Monforts EuroTurn ︱turning speed range 2- 1800 U/min︱rapid speed 10/5 m/min︱tail stock MK 6 ︱number of tapers in turret head Multifix C ︱bed width 550 mm︱power requirement 21/15 kW︱max. torque on the spindle 3320 Nm︱dimensions m︱weight of the machine ca. 6,5 t︱

Used Teach in lathe in good condition Zubehör: - 3 jaw chuck - Multifix C with Capto quick change tool - coolant system - steady - chip conveyor - 4 mech. gear steps (2- 225/ 4- 450/ 8- 900/ 16- 1800 rpm) - electric break main motor

turning diameter 290 mm

turning length 3000 mm

swing dia. 650 mm

swing diameter over face slide 350 mm

spindle bore diameter 71 mm

number of controlled axis 2

control Monforts EuroTurn

turning speed range 2- 1800 U/min

rapid speed 10/5 m/min

tail stock MK 6

number of tapers in turret head Multifix C

bed width 550 mm

power requirement 21/15 kW

max. torque on the spindle 3320 Nm

weight of the machine ca. 6,5 t

Description :

Used Teach in lathe in good condition

Zubehör:
- 3 jaw chuck
- Multifix C with Capto quick change tool
- coolant system
- steady
- chip conveyor
- 4 mech. gear steps (2- 225/ 4- 450/ 8- 900/ 16- 1800 rpm)
- electric break main motor

Datasheet

used Lathes Lathe - cycle-controlled OMG CNA 325 x 1500

Hans Klein Werkzeugmaschinenhandel GmbH
Im Mühlgut 2-4
77815 Bühl
Deutschland

0049 (0) 7223 9617-0
0049 (0) 7223 58512
info@klein-werkzeugmaschinen.de
www.klein-werkzeugmaschinen.de

#1052-04078 · Lathe - cycle-controlled

OMG - CNA 325 x 1500 - - 2001 - SIEMENS SINUMERIK 820 D

Technical details

turning diameter 640 mm︱turning length 1500 mm︱control SIEMENS SINUMERIK 820 D ︱turning diameter over slide 420 mm︱spindle bore 65 mm︱centre height 320 mm︱centre distance 1500 mm︱bed width 440 mm︱spindle drive 17 kW︱max. torque on the spindle max. 162 Nm︱rapid travel - longitudinal/face 10 / 5 m/min︱feed power 10000 / 9500 N︱tailstock quill diameter 100 mm︱tailstock quill stroke 240 mm︱tailstock taper MT 5 ︱total power requirement 25 kW︱weight of the machine ca. 5,5 t︱

Accessories: 3-jaw chuck 310 mmø, various tool holders for turret, running center, coolant

turning diameter 640 mm

turning length 1500 mm

control SIEMENS SINUMERIK 820 D

turning diameter over slide 420 mm

spindle bore 65 mm

centre height 320 mm

centre distance 1500 mm

bed width 440 mm

spindle drive 17 kW

max. torque on the spindle max. 162 Nm

rapid travel - longitudinal/face 10 / 5 m/min

feed power 10000 / 9500 N

tailstock quill diameter 100 mm

tailstock quill stroke 240 mm

tailstock taper MT 5

total power requirement 25 kW

weight of the machine ca. 5,5 t

Description :

Accessories: 3-jaw chuck 310 mmø, various tool holders for turret,
running center, coolant

Datasheet

used Lathes Lathe - cycle-controlled MONFORTS KNC 5 1000

Hans Klein Werkzeugmaschinenhandel GmbH
Im Mühlgut 2-4
77815 Bühl
Deutschland

0049 (0) 7223 9617-0
0049 (0) 7223 58512
info@klein-werkzeugmaschinen.de
www.klein-werkzeugmaschinen.de

#1052-04072 · Lathe - cycle-controlled

MONFORTS - KNC 5 1000 - - 2001 - SYSTEM MTC-K

Technical details

turning diameter 500 mm︱turning length 1000 mm︱control MONFORTS CONTROL ︱control SYSTEM MTC-K ︱turning diameter over bed slide 290 mm︱spindle bore 70 mm︱spindle turning speed range 3 - 2800 U/min︱spindle power 15 kW︱max. torque on the spindle 1530 Nm︱spindle head DIN 55027 Gr. 8 ︱feed power X/Z axis 11300 N︱rapid travel - longitudinal/face 10 / 5 m/min︱bed width 360 mm︱travel of cross-slide 265 mm︱upper slide travel 140 mm︱turning tool - shaft cross cut 32 x 25 mm︱tailstock quill diameter 80 mm︱tailstock quill stroke 160 mm︱tailstock taper MT 5 ︱total power requirement kW︱

Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant

turning diameter 500 mm

turning length 1000 mm

control MONFORTS CONTROL

control SYSTEM MTC-K

turning diameter over bed slide 290 mm

spindle bore 70 mm

spindle turning speed range 3 - 2800 U/min

spindle power 15 kW

max. torque on the spindle 1530 Nm

spindle head DIN 55027 Gr. 8

feed power X/Z axis 11300 N

rapid travel - longitudinal/face 10 / 5 m/min

bed width 360 mm

travel of cross-slide 265 mm

upper slide travel 140 mm

turning tool - shaft cross cut 32 x 25 mm

tailstock quill diameter 80 mm

tailstock quill stroke 160 mm

tailstock taper MT 5

Description :

Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT,
coolant

Datasheet

used Lathes Lathe - cycle-controlled WEILER E 80 / 3000

Stiens Werkzeugmaschinen GmbH
Mittelweg 92
59302 Oelde
Deutschland

+49 252283490
(0049) - 2522 - 8349-20
info@stiens.de
www.stiens.de

#1039-9062 · Lathe - cycle-controlled

WEILER - E 80 / 3000 - - 2001 - Sinumerik 840 D Siemens

Technical details

turning diameter over bed 810 mm︱turning length 3.000 mm︱control Sinumerik 840 D Siemens︱swing diameter over face slide 510 mm︱radial face slide travel 410 mm︱travel upper slide 140 mm︱bed width 480 mm︱turning tool - shaft cross cut 32 x 25 mm︱Main spindle: ︱turning speed range - main spindle 1 - 1.800 min/-1︱transmission ratio 2 ︱transmission ratio 1 1 - 450 min/-1︱transmission ratio 2 4 - 1.800 min/-1︱power capacity - main spindel 37,5 / 30 kW︱max. Torque 3.150 / 2.600 Nm︱spindle head Gr. 11 DIN 55027︱spindle diameter in front bearing 150 mm︱spindle bore 106 mm︱taper bore 112 mm︱feeds: ︱

Lathe cycle controled WEILER - E 80 / 3000 - incl. 3x steady rest - incl. 2x boring bar holders - div. tool holders - face-plate 560mm - WITHOUT boring bars / WITHOUT Three-Jaw-Power-Chuck

turning diameter over bed 810 mm

turning length 3.000 mm

control Sinumerik 840 D Siemens

swing diameter over face slide 510 mm

radial face slide travel 410 mm

travel upper slide 140 mm

bed width 480 mm

turning tool - shaft cross cut 32 x 25 mm

turning speed range - main spind. 1 - 1.800 min/-1

transmission ratio 2

transmission ratio 1 1 - 450 min/-1

transmission ratio 2 4 - 1.800 min/-1

power capacity - main spindel 37,5 / 30 kW

max. Torque 3.150 / 2.600 Nm

spindle head Gr. 11 DIN 55027

spindle diameter in front bearin. 150 mm

spindle bore 106 mm

taper bore 112 mm

Description :

Lathe cycle controled
WEILER - E 80 / 3000

- incl. 3x steady rest
- incl. 2x boring bar holders
- div. tool holders
- face-plate 560mm

- WITHOUT boring bars / WITHOUT Three-Jaw-Power-Chuck

Datasheet

used Lathes Lathe - cycle-controlled PINACHO SM/200

ATMH Werkzeugmaschinenhandel GmbH
Scharpenbergerstr.96-98
58256 Ennepetal
Deutschland

+49 (0) 2333 / 403 43 70
+49 (0) 2333 / 403 43 75
info@atmh.de
www.atmh.de

#2065-H1116 · Lathe - cycle-controlled

PINACHO - SM/200 - - 2001 - Fanuc

Technical details

turning diameter 420 mm︱turning length 1200 mm︱control Fanuc ︱bore diameter 60 mm︱

turning diameter 420 mm

turning length 1200 mm

control Fanuc

bore diameter 60 mm

Description :

Datasheet

used Lathes Lathe - cycle-controlled MAS MT 32 NC

Marcels Maschinen AG
Anthoptstrasse 11
8222 Beringen (Schaffhausen)
Schweiz

(0041) 44 872 3400
(0041) 44 872 3403
info@marcels-maschinen.ch
http://www.marcels-maschinen.ch

#1065-4932 · Lathe - cycle-controlled

MAS - MT 32 NC - - 2001 - HEIDENHAIN MANUAL PLUS M

Technical details

control HEIDENHAIN MANUAL PLUS M ︱turning diameter over bed 320 mm︱centre height 160 mm︱centre distance 800 mm︱turning dia. over face-slide 150 mm︱spindle bore 50 mm︱spindle taper DIN 55027/B6 ︱spindle turning speed - stepless 0-4000 U/min︱total power requirement 7 kW︱dimensions of the machine ca. 400x160x190 cm︱weight of the machine ca. 2.2 t︱

control HEIDENHAIN MANUAL PLUS M

turning diameter over bed 320 mm

centre height 160 mm

centre distance 800 mm

turning dia. over face-slide 150 mm

spindle bore 50 mm

spindle taper DIN 55027/B6

spindle turning speed - stepless 0-4000 U/min

total power requirement 7 kW

dimensions of the machine ca. 400x160x190 cm

weight of the machine ca. 2.2 t

Datasheet

used Lathes Lathe - cycle-controlled FAT TUR 560

FIMOTEC
20 RUE AMPERE
67500 HAGUENAU
Frankreich

+33 (0)388720247
+33 (0)388936066
FIMOTEC@WANADOO.FR
WWW.FIMOTEC.FR

#1105-03911 · Lathe - cycle-controlled

FAT - TUR 560 - - 2000 - Siemens 810D

Technical details

turning diameter 560 mm︱turning length 1000 mm︱center height over bed 560 mm︱swing diameter over face slide 300 mm︱spindle bore 105 mm︱spindle speeds: 2 Stufen 2 - 2500 U/min︱tool taper REVOLVER VDI 40 ︱control Siemens 810D ︱total power requirement 18,5 kW︱weight of the machine ca. 4 t︱

Equipment: swarf protector automatic cooling device RS 232 interface 3-jaw chuck diameter 315mm automatic lubrication system art-Documentation TURRET 8 POSITION VDI 40

turning diameter 560 mm

turning length 1000 mm

center height over bed 560 mm

swing diameter over face slide 300 mm

spindle bore 105 mm

spindle speeds: 2 Stufen 2 - 2500 U/min

tool taper REVOLVER VDI 40

control Siemens 810D

total power requirement 18,5 kW

weight of the machine ca. 4 t

Description :

Equipment:
swarf protector
automatic cooling device
RS 232 interface
3-jaw chuck diameter 315mm
automatic lubrication system
art-Documentation
TURRET 8 POSITION VDI 40

Datasheet

Cycle controlled Lathe from LagerMaschinen

Cycle controlled Lathe from LagerMaschinen

In the world of business and production management the cycle controlled lathe draws from several other instruments. Lathes are used in modern and classical carpentry as well as modern electrical and metal pipe work. As with any machine it's important to seek advice from top consultants when purchasing such an item. LagerMaschinen's wide selection of the the cycle controlled lathe will certainly make your choices easier. Please visit the website today to get started on LagerMaschinen.

LagerMaschinen provides everything you need.

LagerMaschinen's wide array of services offers its clients many opportunities. For instance you can have your new-but-used used machine correctly installed and connected - both electrically and within the entire computer network - so you can get back to production and production management. With a cycle controlled lathe from LagerMaschinen you'll also have free access to senders and machine experts and be able to ask advice as well as ensure the quality of your machine. LagerMaschinen's wide network in the machining industry means you'll be able to find the exact machine you need around the corner or at least know when you can 'give it a spin'. The cycle controlled lathe from LagerMaschinen - log on today.

A used machine gets you where you want to be.

The cycle controlled lathe from LagerMaschinen will certainly increase your bottom line - whether working in the plastics industry or in metalworks a cycle controlled lathe from LagerMaschinen can raise revenue annually and within the short term. Take advantage of LagerMaschinen's various add-ons such as customized delivery and installation. LagerMaschinen.de's cycle controlled lathe - start looking today.

TOP Manufacturer:

MONFORTS - WEILER - BOEHRINGER - SOMAB - PADOVANI - SAEILO - GILDEMEISTER - CAZENEUVE - HARRISON - WAGNER -
