turning diameter 232 mm︱turning length 100 mm︱control MITSUBISHI M 70 L︱Number of axles 4 St.︱bar material dia. 42 mm︱rapid traverse 20 m/min︱turning speeds 4000 U/min︱Drive 7,5 kW︱collet chuck DIN 173 E ︱swing dia. 560 mm︱total power requirement 14 kW︱weight of the machine ca. 3,2 t︱dimensions of the machine ca. 3,1x1,75x1,86 m︱swarf conveyor ︱

---

With counter spindle With heat exchanger With automatic feeding

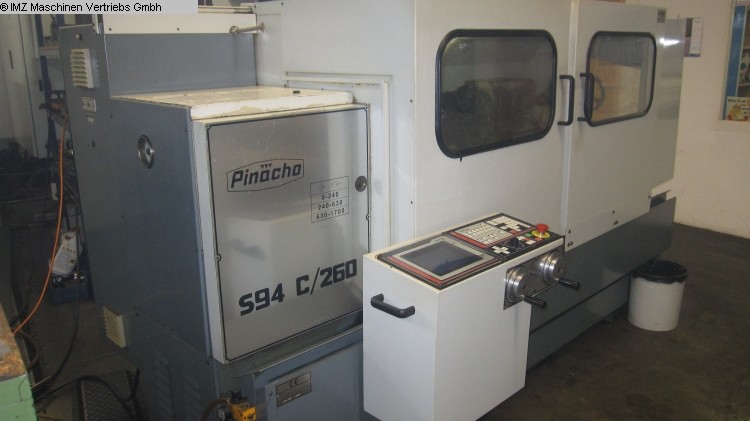

turning diameter 520 mm︱turning length 1625 mm︱control FAGOR 800 TG ︱greates pass round over bed 530 mm︱swing diameter over slide rest 475 mm︱centre height 260 mm︱bed width 350 mm︱main spindle bore 68 mm︱turning speeds 1500 U/min︱rapid traverse 5 m/min︱Drive 10 kW︱total power requirement kW︱weight of the machine ca. 1,87 t︱dimensions of the machine ca. 2,8x1,4x1,8 m︱

---

turning diameter 250 mm︱turning length 450 mm︱control SIEMENS Sinumerik ︱number of turret 12 pos︱number of driven tools 6 Stück︱turning speed range 0-5000 U/min︱max. torque 1250 Nm︱total power requirement 21 kW︱weight of the machine ca. 3,2 t︱dimensions of the machine ca. 3,7 x 1,5 x 1,7 m︱

---

Kitagawa 3 - Jaw chuck 250 mm Tailstock Parts catcher Chip conveyor Switch-on hours: 27374 h Spindle hours: 157858 h

turning diameter over bed 3.520 mm︱turning diameter over slide rest 3.000 mm︱turning length 15.000 mm︱turning diameter over slide 2.440 mm︱control Sinumerik 840 D SL ︱turning speeds 50 U/min︱workpiece weight max. 80.000 kg︱turning diameter orig. 3500 / mod. 2400 mm︱accuracy +/- 0,01 °︱total power requirement 110 kW︱weight of the machine ca. 154,4 t︱dimensions of the machine ca. 20,7 x 6,0 m︱

---

- The modernization (2012) carried out on this machine mainly comprises a new mechanical main gearbox including main spindle drive and the addition of a holding brake plus integration into the existing electrical system. - In the course of the work, it became apparent that the two double-row cylindrical roller bearings had to be reworked.Thus, the entire bearing arrangement was modified and optimally adjusted. - In addition, control and safety-related points had to be modified. - Geometric acceptance report - Temperature behavior of the main spindle bearing arrangement - Test machining Machine is in very good condition. The technical data has been obtained to the best of our ability and belief. It is given in good faith, but its accuracy cannot be guaranteed.

turning diameter 700 mm︱turning length 4000 mm︱control Pico Auto Memory ︱centre height 350 mm︱turning diameter over slide 480 mm︱spindle passage 80 mm︱tailstock quill taper MT MK5 ︱turning speeds 1500 U/min︱total power requirement 12,5 kW︱weight of the machine ca. 6 t︱dimensions of the machine ca. 5,6x1,6x2,25 m︱

---

Tailstock MK 5 Quick change steel holder Cycle control Pico Auto Memory steady Röhm 315 wedge bar chuck coolant device various steel holders

spindle diameter 125 mm︱x-travel 710 mm︱y-travel 400 mm︱z-travel 200 mm︱table-size 1000x630 mm︱turning speeds 0-2240 U/min︱power capacity 5,5 kW︱total power requirement kW︱weight of the machine ca. 5 t︱dimensions of the machine ca. 3,0x2,5x2,7 m︱

---

x-travel 800 mm︱y-travel 800 mm︱z-travel 800 mm︱Control Sinumerik 840 D︱b-axis 360 °︱turning speeds 16.000 U/min︱rapid traverse 60 m/min︱tool taper HSK 63 ︱tool magazin: 144 Plätze︱total power requirement ︱weight of the machine ca. 17 t︱dimensions of the machine ca. 7,4 x 3,35 x 3,7 m︱

---

Pallet changing device: 180 ° NC rotary table Set-up station Full-space enclosure with workspace rinsing and manual rinsing gun Coolant system with IKZ Coolant pump 20-70 bar Coil suction filter 50mü Double chamber filter 60mü for internal coolant supply incl. prewarning Chip conveyor in scraper belt design Renishaw measuring system with probe Tool breakage control parallel to machining time (mech. probe) in tool magazine Incl. fixtures / clamping angle

x-travel 1.520 mm︱y-travel 520 mm︱z-travel 460 mm︱Control Heidenhain TNC 620︱spindle turning speed range 12.000 U/min︱table diameter 650 mm︱table load capacity 500 kg︱tool taper SK 40 ︱Number of tools 24-fach St.︱total power requirement kW︱weight of the machine ca. 11,50 t︱dimensions of the machine ca. 4,65 x 2,94 x 30,35 m︱

---

TNC software options: - Touch probe functions - Tilting the working plane and rotary table machining - Automatic kinematic measurement with touch probe cycles Blum workpiece touch probe Internal tool cooling 50 bar Chip conveyor

x-travel 760 mm︱y-travel 460 mm︱z-travel 610 mm︱Control Hurco Ultimax 3 ︱turning speed range - power take off spindle 8.000 U/min︱table-size 1.150 x 500 mm︱tool taper SK 40 ︱tool change unit 24-fach ︱total power requirement kW︱weight of the machine ca. 4,1 t︱dimensions of the machine ca. 3,0 x 4,2 x 2,9 m︱

---

x-travel 850 mm︱y-travel 630 mm︱z-travel 500 mm︱control Heidenhain TNC 425︱turning speed range - power take off spindle 4.200 U/min︱table-size 1200 x 550 mm︱tool taper SK 40 ︱tool change unit 34-fach ︱total power requirement kW︱weight of the machine ca. 6,5 t︱dimensions of the machine ca. 4,0 x 2,8 x 2,4 m︱

---

x-travel 1600 mm︱y-travel 500 mm︱z-travel 470 mm︱control FANUC 15 M ︱turning speeds 6000 U/min︱0 7,5/5,5 kW︱rapid traverse 24 m/min︱total power requirement kW︱weight of the machine ca. 9 t︱dimensions of the machine ca. 3,5x3,0x2,8 m︱double table ︱tool probe ︱swarf conveyor ︱

---

2 Tables

x-travel 164 mm︱y-travel 210 mm︱z-travel 70 mm︱Control CNC 6000 ︱turning speeds 40000 U/min︱tool adaptor HSK E 25 ︱tool change unit 7-fach ︱total power requirement kW︱weight of the machine ca. 0,9 t︱dimensions of the machine ca. 2,3x1,0x1,9 m︱

---

HSC Milling Machine Portal stand construction for milling and engraving High-frequency spindle HFS 301 40,000 min-1; 3000 watts; HSK 25 E recording Tool length scan Laser sensor system for measuring the workpiece length and workpiece diameter NC controlled part head CNTK 200 center height: 200 mm Clamping device of a groove table Clamping device for clamping round components Coolant circulation system Collet holder Alpha CAM software (AC Mill 2D)

x-travel 980 mm︱y-travel 1080 mm︱z-travel 280 mm︱Control ︱table-size 1.125 x 1.700 mm︱table height 800 mm︱diameter 435 mm︱spindle pitch 16 x 5 mm︱total power requirement kW︱weight of the machine ca. 0,8 t︱dimensions of the machine ca. 2,08 x 1,98 x 2,0 m︱

---

Accessories: - Tool changing station - TS20 probe - Clamping system

x-travel 11200 mm︱y-travel 3130 mm︱z-travel 1000 mm︱Control NUM 1060 W ︱A-axis +- 120 °︱c-axis +215/-210 °︱spindle motor 15 kW︱spindle taper HSK-F63 ︱turning speeds 24000 U/min︱table width 1500 mm︱table length 9400 oder 2x3000 mm︱total power requirement kW︱weight of the machine ca. 20 t︱dimensions of the machine ca. 14,6x5,0x4,225 m︱

---

Use: e.g. for processing aluminum panels, drilling profiles, advertising (signs milling, etc.), mold construction (prototypes) and processing of light steel frames / -beams using HSC milling The vertically arranged high-frequency milling spindle for automatic Tool change is mounted in a fork head on the Z-axis plate. The Spindle can be moved with the fork head in 2 NC axes, in the A axis and the C-axis. The vertical movement is carried out via the Z-axis. Liquid cooling via a cooling unit. Tool magazine: moving plate changer in the potal, outside the Work area Minimum quantity cooling and lubrication system MQL The machine table consists of milled aluminum plates 8 bar compressed air, clean, dry, oil-free, including pressure intensifier 10- 12 bar to express the tool Feed rates in rapid traverse / working step: X-axis: 60 m / min Y-axis: 60 m / min Z-axis: 30 m / min C-axis: 90 ° sec A-axis: 90 ° sec Total weight approx.20,000 kg Base frame approx.12,500 kg Portal with Z-axis approx. 6,500 kg machine hours: 46.312 h

x-travel 1040 mm︱y-travel 500 mm︱z-travel 300 mm︱Control Sharnoa ︱feeds 10-10000 mm/min︱rapid feed 15000 mm/min︱table-size 1800x690 mm︱table load 2000 kg︱spindle taper BT 30 ︱turning speeds 6-12000 U/min︱spindle drive 7 kW︱tool change unit 20-fach ︱max. tool diameter 80 mm︱max. tool length 170 mm︱max. tool weight 5 kg︱total power requirement kW︱weight of the machine ca. 4 t︱dimensions of the machine ca. 4x2,1x2,9 m︱

---

The machine has a spindle, which can be manually set at an angle between 0 and 60 ° adjusted. This was used to drive programmed drilling patterns in this position, so mainly drill oblique holes in a plate, but with various tools.

workpiece diameter 125 mm︱module 4 ︱Control SIEMENS 840 C ︱x-axis 105 mm︱y-axis 40 mm︱z-axis 500 mm︱total power requirement 47 kVA︱weight of the machine ca. 5,5 t︱dimensions of the machine ca. 2,6x2,1x3,1 m︱

---

with measuring and palletizing system from Hörzer & Fehrenbach for gearwheels (bore receiver) Workpiece diameter: 17-39.5 mm Component height: approx. 6-15 mm Oblique as well as straight toothed

grinding diameter 350 mm︱grinding length 400 mm︱centre height 175 mm︱Control FANUC 16i-T ︱max. workpiece weight between centers 80 kg︱x-axis 300 mm︱z-axis 485 mm︱b-axis 0-30 °︱turning speeds 3200 U/min︱total power requirement 38 kVA︱weight of the machine ca. 6,5 t︱dimensions of the machine ca. 4,5x2,0x2,2 m︱

---

with charging system Seckler Modulo 5 The machine has produced parts with a precision of 5-6µ.

internal diameter 200 mm︱grinding depth 250 mm︱swing diameter 330 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

x-travel 280 mm︱y-travel 460 mm︱table-size 280x610 mm︱table movement 280x460 mm︱spindle turning speed range 40-2500 U/min︱grinding range 5,0-125 mm︱spindle diameter mm︱grinding depth 0,4-5 mm︱stroke length max. 92 mm︱total power requirement kW︱weight of the machine ca. 1,8 t︱dimensions of the machine ca. 2x1,5x2,8 m︱

---

Single Column Jig Grinder, conventional, DRO, accessories

max. grinding diameter 150 / 20 mm︱grinding length 340 mm︱workpiece length 500 mm︱Control FANUC 31iB5︱workpiece dia. 250 mm︱workpiece weight max. 50 kg︱taper DIN 69871 SK 50 ︱spindle speeds (infinitely variable) 1000 - 8000 U/min︱x-axis 340 mm︱y-axis 240 mm︱z-axis 240 mm︱Working speed 10 m/min︱A-axis 360 °︱c-axis 197 °︱grinding spindle drive 7,1 kW︱total power requirement 12 kW︱weight of the machine ca. 3,3 t︱dimensions of the machine ca. 2,4 x 2,2 x 2,55 m︱

---

Basic configuration of the machine: -incl. connector for connection of external equipment (KLMA and oil mist cutter) -incl. remote software -incl. direct grinding spindle drive -incl. electronic measuring probe -incl. electronic handwheel -incl. central lubrication -incl. standard accessories - Grinding wheel changer 6-fold with tilting function for automatic changing of HSK-50F grinding wheel fixtures pneumatically supported for six up to 3 grinding wheels per grinding wheel holder. grinding wheel holder. - Direct measuring system in X-, Y-, Z-axis - Position resolution: 0.00005 mm - Control panel S20 F3+ without touch function - Switch cabinet cooling (active cooling unit) - Special software surface grinding - Stainless steel drip tray for S20+ 1960x1750 mm / 65 kg - Stainless steel drip tray for RC 1250 2x 8 l / 920x 1220 mm / 20 kg - Signal column with LED technology with acoustic signal indicates the status of the machine. - Special robot cell RC1250 for S20+ - 6-axis robot type FANUC LR Mate 200iD: - incl. control R-30iB - max. payload: 5 kg - reach: 704 mm (without robot hand) - defined interfaces to the grinding center S20+ - simulation adapter for robot RC 1250 - loading flap for S20+ - special robot hand with double gripper for loading cell RC 1250 - automatic fire extinguishing system - coolant ring on grinding head - dividing head nozzle 300 mm - leak sensor for drip tray - pneumatic clamp for hydraulic expansion chuck S20 - Hydraulic expansion chuck SK50/Ø20 (automatic) - Special intermediate bush Ø20 mm - clamping Ø 10 mm - mounting L106,D35,B8-32 - stronger lifting pump with level switch for S20 - Oil mist separator LTA (left version) - coolant ultra-fine filter system Knoll type Mocropur 120 F: - tank approx. 550l - Coolant pump 80l/min at 8 bar / 4 kW - filter capacity max. 120 l/min - incl.cooling unit integrated - plate heat exchanger - magnetic roller - plug external equipment: - robot RC 1200 / RC 1250 - coolant unit - suction workpiece diameter with counter tip: ca.125 mm workpiece length with counter tip: ca.250 mm The technical data has been created to the best of our knowledge, but we cannot assume any liability for it.

cutting diameter 350 mm︱saw band length 5270 mm︱cutting width 335 mm︱table height 800 mm︱cutting speed 0-110 m/min︱total power requirement 16 A kW︱weight of the machine ca. 1,5 t︱dimensions of the machine ca. 2,2 + 2 RB x 3,5 x 1,9 m︱

---

Cooling water device Chip conveyor Roller conveyor div. saw blades

cutting speed 15 - 90 m/min︱total power requirement 2,4 kW︱weight of the machine ca. 0,95 t︱dimensions of the machine ca. 2,15 x 1,5 x 1,65 m︱

---

Bj. 1996 ︱pulling capacity 100 kn︱stroke length max. 2500 mm︱speed 1-22 m/min︱return speed 2-27 m/min︱Control SPS S5-115 U ︱

---

Cast aluminum bars were cleared mechanically on this production line machined (drilling / milling) and separated into individual parts This also includes: -1 broaching machine (HOFFMANN, horizontal) so far for steel processing (Shift rods) - Horizontal broaching machine from Hoffmann - Machine type: RAW 630 x 2500 x100 - year of construction 1984 - Control S5 Siemens - 4 clearing points with 3 partial positions each - 1 x reloading for rear side processing - Loading and unloading: - 3x bunkers for raw parts - 3 x feed belts - Loading and unloading handling with 4 x loading and 4 x unloading grippers - 1 x turning device - 3 x material buffers for finished parts - year of construction 1995 - Siemens S7 control

max. workpiece diameter 200 mm︱min. workpiece diameter 30 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---
